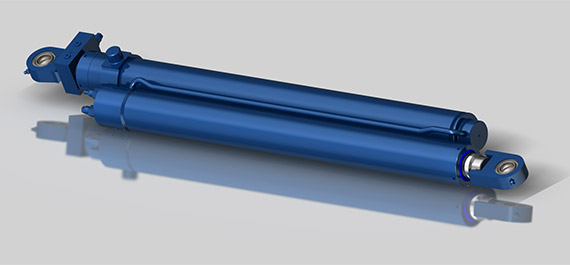

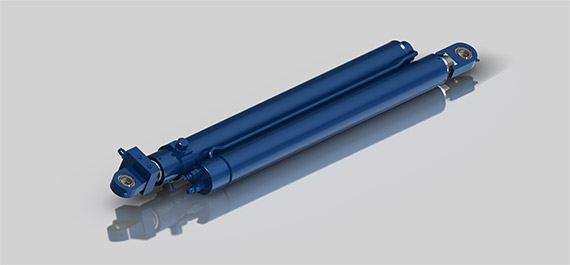

Piggy-Back Hydraulic Cylinders

Texas Hydraulics’ Piggy-back Cylinder design enables a longer stroke with a shorter overall length. Piggy-back cylinders are designed for applications that require a long extend with a short retraction area. It is suitable for both high and low pressure situations, and the absence of hoses and fittings eliminates leaks.

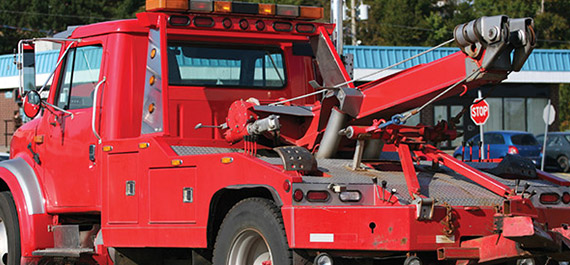

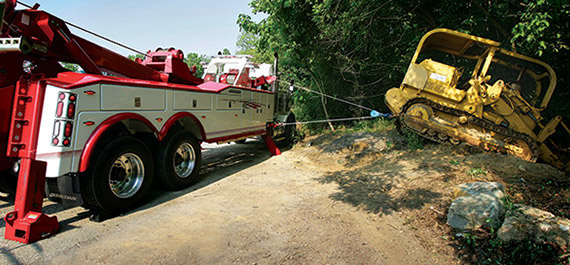

Applications: Road Service, Utilities, Material Handling, Oil & Gas, Defense, Transportation, Agriculture

Piggyback Hydraulic Cylinders | Texas Hydraulics Piggyback Hydraulic Cylinders | Texas Hydraulics

Features

  • For applications requiring short overall lengths and consistent load capabilities or speed
  • Longer stroke with shorter overall length
  • Designed for applications that require a long extend with a short retraction area
  • Interchangeable Seals on the same bore size
  • High Pressure and Low Pressure Applications
  • Provides Consistent Load and Speed Capabilities
Piggyback Hydraulic Cylinders | Texas Hydraulics

Optional Features

  • Rod or Tube Ported
  • Out and Down Functionality
  • Valve Integration
  • Cushions
  • Hollow Tubes
  • Sequencing
